Main Features

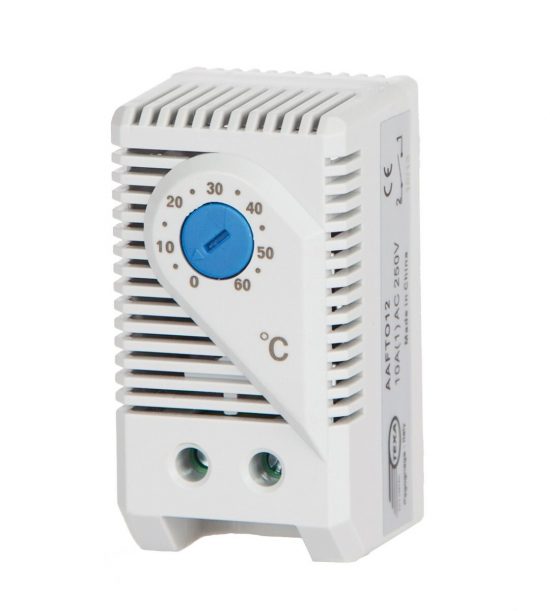

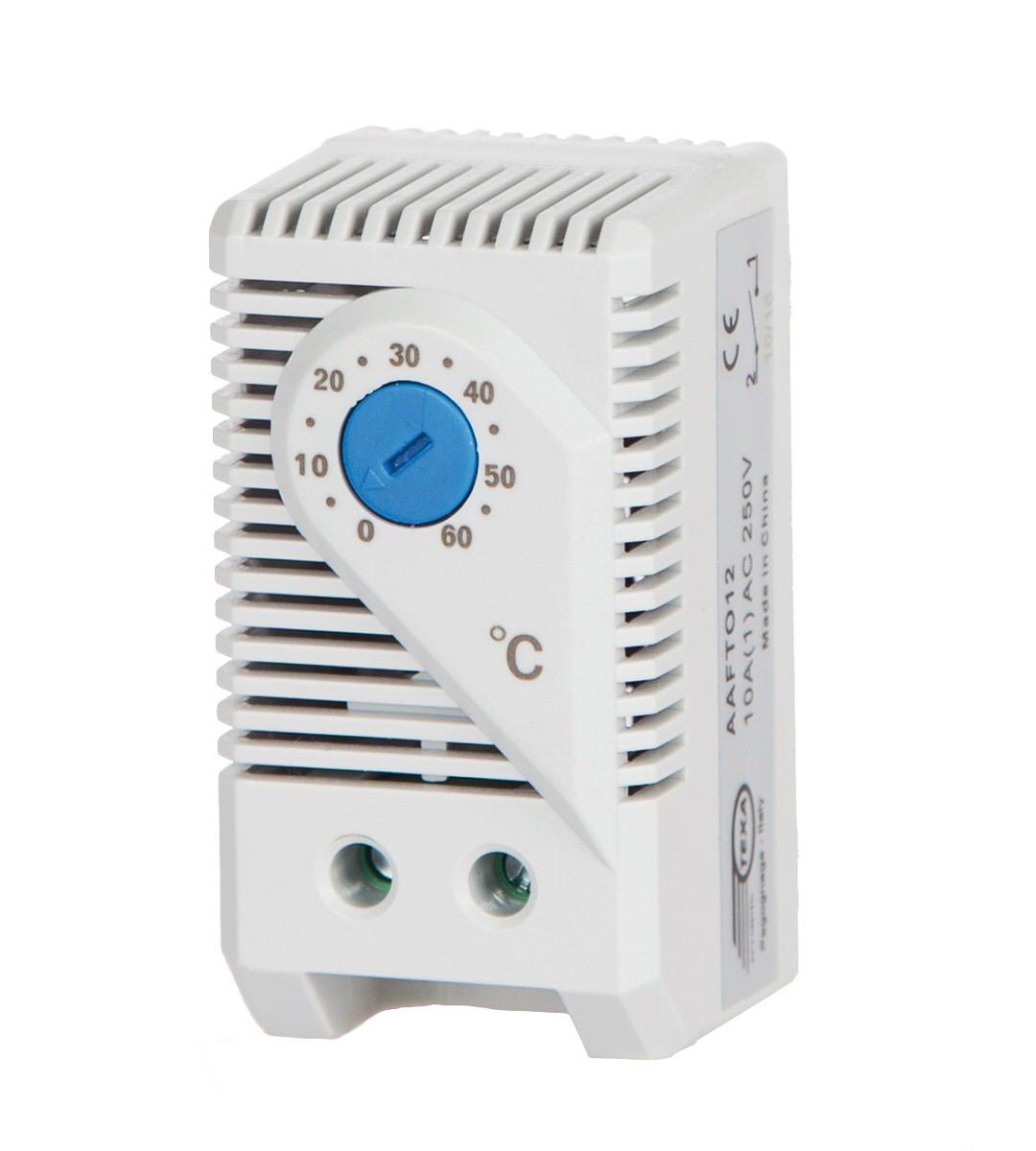

Compact thermostat with large adjustment scale. It has open contact and is mainly used to control fans, heat exchangers or as a signal for maximum temperature.
Technical specifications
- Field of regulation (°C)
0-60
- Activation differential (K)
7
- Contact
NO
- Contact capacity with resistive load (A)
10
- Max voltage (V)
250 AC
- Height (mm)
60
- Width (mm)
35
- Depth (mm)
35
- Sensitive element
Bimetallic
- Electrical connection
2-pole terminal board (2,5 mm2 )
- Operating temperature limit (°C)
-10/+80
- Clip installation for DIN rail
35 mm
- IP rating EN60529
IP20 as per EN 60259
- Weight (gr)
40
- Conformity
CE
