Main Features

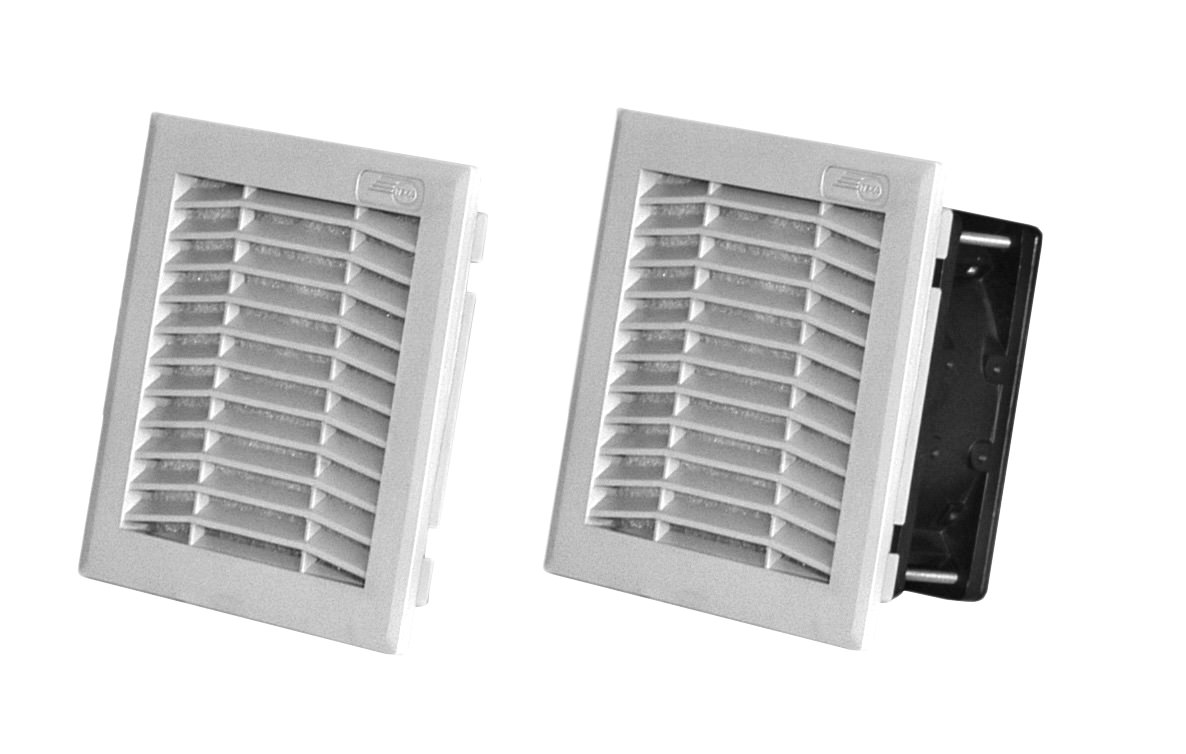

The FAN Series ventilation units are differentiating because of their quick installation and easy maintenance. The unit comes with air flow direction set from the exterior to the interior of the cabinet. Alternatively, direction can be changed, from the cabinet interior to the exterior by simply reinstalling the fan in the reverse direction.
Technical specifications
- Air flow rate (m3/h)
230/262
- Power supply (V ~ Hz)
230 1~ 50-60
- Height (mm)
250
- Width (mm)
250
- Depth (mm)
114
- Power draw (W)
45/40
- Max Current (A)
0, 35/0, 28
- Overcurrent protection
Internal motor
- Electrical connection
Faston
- Operating cycle
100%
- Temperature limits (°C)
-10/+50
- IP rating EN60529
IP54
- IP rating EN60529 (Kit IP55)
1 x 309204
- Noise level (db-A)
56/58
- Fan + FIL air flow rate (m3/h)
1 x 309197: 195/220 2 x 309197: 215/233 1 x 309198: 205/228
- Air flow direction
External to internal reversible
- Filter (Eurovent)
EU4
- Motor support
Bearings
- Lifetime L 10 (h)
45000
- Weight (kg)
1, 4
- Color
RAL 7035 embossed effect
- Conformity
CE
