Main Features

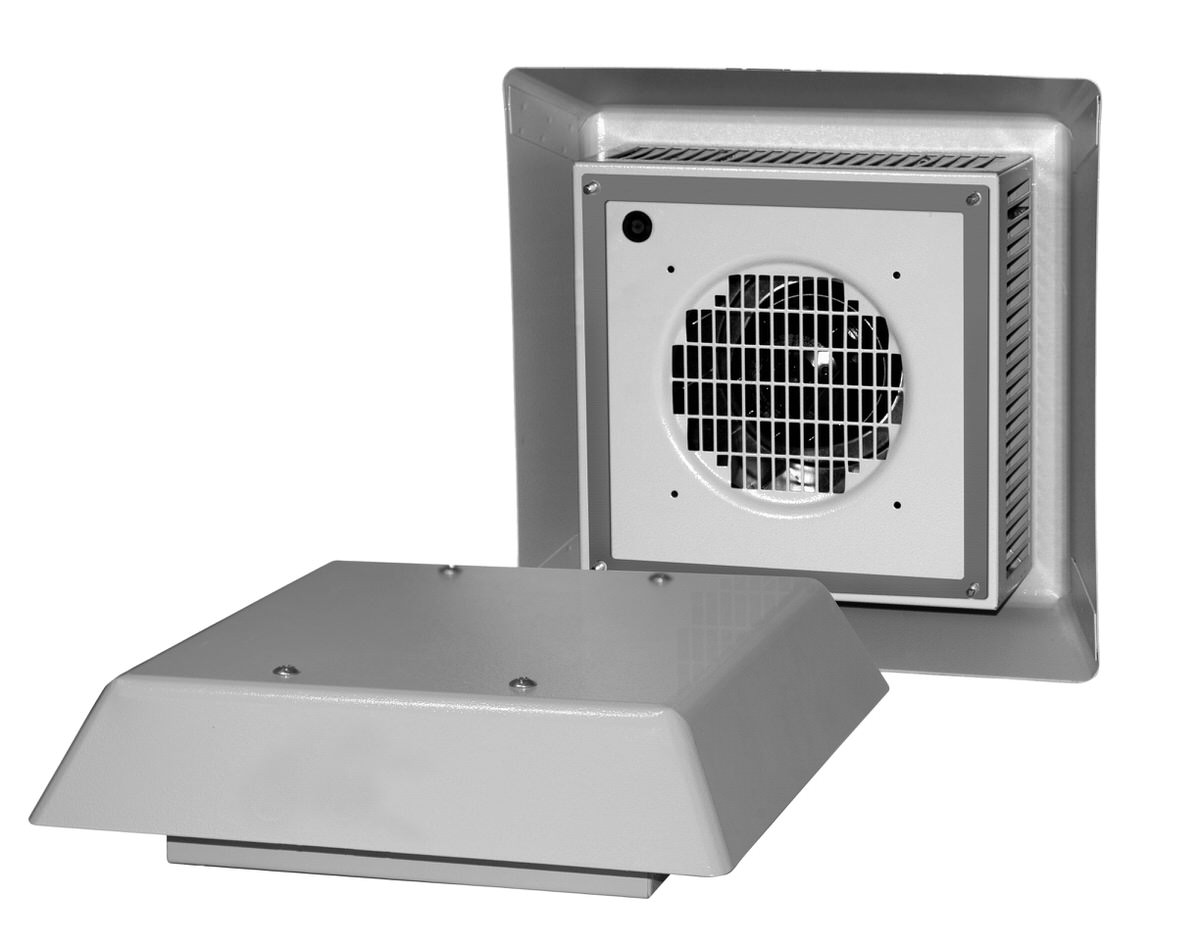

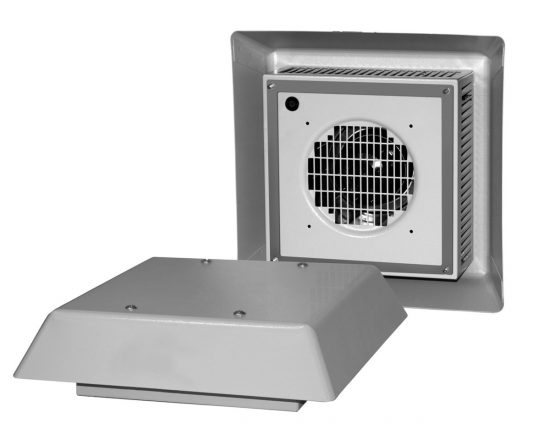

Characterized by its attractive & innovate design and ease of installation, the DLK Series roof ventilation tower is the ideal solution in installations where there's a requirement for increased air flow compared to that provided by the FAN Series.
Technical specifications
- Air flow rate (m3/h)
600/625
- Fan tower + air flow capacity (m3/h)
550/590
- Power supply (V ~ Hz)
230 1~ 50-60
- Height (mm)
122
- Width (mm)
375
- Depth (mm)
375
- Power draw (W)
78/106
- Max Current (A)
0, 32/0, 40
- Overcurrent protection
Internal motor
- Electrical connection
Cable
- Operating cycle
100%
- Temperature limits (°C)
-20/+60
- IP rating EN60529
1 x 309203: IP54
- Noise level (db-A)
62/64
- DLK+FIL35XNOB air flow capacity
500/540
- Air flow direction
Interior to exterior
- Motor support
Bearings
- Weight (kg)
6
- Color
RAL 7035 embossed effect
- Conformity
CE
