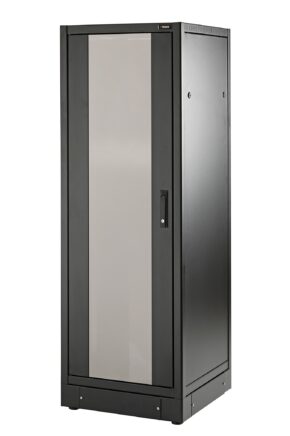

Server Series IP20

Technical specifications

Code: 309070-AV-PP-SZ
Height (Rack unit): 24
Width (mm): 600
Depth (mm): 1000
Front door: Tempered glass
Rear panel: Removable, 1.0 mm steel sheet, with ¼ turn lock
Static load capacity (Kg): 1000
Color: Black
Structure: Modular and disassemblable
Material: 2.0 mm steel sheet
Static load: 1000 kg
19" Uprights: 4 pcs, C=2.00 mm,19” as per IEC 60297-1-2
Front door: With 4.0 mm glass, tempered as per EN 12150-1
Side panels: Removable, 1.0 mm steel sheet, with ¼ turn lock
Rear panel: Removable, 1.0 mm steel sheet, with ¼ turn lock
Levelling feet: 4 pcs of M10x35 mm
Cable entries: Pre-cut, base and roof (optional brush)
Roof ventilation: Natural or forced (up to four fans)
Color: Epoxy powder Black RAL 9005
Protection degree: IP20 as per EN 60529
Conformity: RoHS 2 as per 2011/65/EU
Warranty: 2 years

309070-AV-SZ

Server 19" 24U H1156xW600xD1000 smoked glass front door and perforated 80% rear door, removable side panels, with levelling feet, colour black

Price

Total

Technical specifications

Code: 309070-AV-SZ
Height (Rack unit): 24
Width (mm): 600
Depth (mm): 1000
Front door: Tempered glass
Rear door: Perforated 80%
Static load capacity (Kg): 1000
Color: Black
Structure: Modular and disassemblable
Material: 2.0 mm steel sheet
Static load: 1000 kg
19" Uprights: 4 pcs, C=2.00 mm,19” as per IEC 60297-1-2
Front door: With 4.0 mm glass, tempered as per EN 12150-1
Rear door: Perforated 80%
Side panels: Removable, 1.0 mm steel sheet, with ¼ turn lock
Levelling feet: 4 pcs of M10x35 mm
Cable entries: Pre-cut, base and roof (optional brush)
Roof ventilation: Natural or forced (up to four fans)
Color: Epoxy powder Black RAL 9005
Protection degree: IP20 as per EN 60529
Conformity: RoHS 2 as per 2011/65/EU
Warranty: 2 years

309070-SZ

Server 19" 24U H1156xW600xD1000 perforated 80% front and rear doors, removable side panels, with levelling feet, colour black

Price

Total

Technical specifications

Code: 309070-SZ
Height (Rack unit): 24
Width (mm): 600
Depth (mm): 1000
Front door: Perforated 80%
Rear door: Perforated 80%
Static load capacity (Kg): 1000
Color: Black
Structure: Modular and disassemblable
Material: 2.0 mm steel sheet
Static load: 1000 kg
19" Uprights: 4 pcs, C=2.00 mm,19” as per IEC 60297-1-2
Front door: Perforated 80%
Rear door: Perforated 80%
Side panels: Removable, 1.0 mm steel sheet, with ¼ turn lock
Levelling feet: 4 pcs of M10x35 mm
Cable entries: Pre-cut, base and roof (optional brush)
Roof ventilation: Natural or forced (up to four fans)
Color: Epoxy powder Black RAL 9005
Protection degree: IP20 as per EN 60529
Conformity: RoHS 2 as per 2011/65/EU
Warranty: 2 years

309071-AV-PP-SZ

Server 19" 24U H1156xW800xD1000 smoked glass front door, removable side and rear panels, with levelling feet, colour black

Price

Total

Technical specifications

Code: 309071-AV-PP-SZ
Height (Rack unit): 24
Width (mm): 800
Depth (mm): 1000
Front door: Tempered glass
Rear panel: Removable, 1.0 mm steel sheet, with ¼ turn lock
Static load capacity (Kg): 1000
Color: Black
Structure: Modular and disassemblable
Material: 2.0 mm steel sheet
Static load: 1000 kg
19" Uprights: 4 pcs, C=2.00 mm,19” as per IEC 60297-1-2
Front door: With 4.0 mm glass, tempered as per EN 12150-1
Side panels: Removable, 1.0 mm steel sheet, with ¼ turn lock
Rear panel: Removable, 1.0 mm steel sheet, with ¼ turn lock
Levelling feet: 4 pcs of M10x35 mm
Cable entries: Pre-cut, base and roof (optional brush)
Roof ventilation: Natural or forced (up to four fans)
Color: Epoxy powder Black RAL 9005
Protection degree: IP20 as per EN 60529
Conformity: RoHS 2 as per 2011/65/EU
Warranty: 2 years

309071-AV-SZ

Server 19" 24U H1156xW800xD1000 smoked glass front door and perforated 80% rear door, removable side panels, with levelling feet, colour black

Price

Total

Technical specifications

Code: 309071-AV-SZ
Height (Rack unit): 24
Width (mm): 800
Depth (mm): 1000
Front door: Tempered glass
Rear door: Perforated 80%
Static load capacity (Kg): 1000
Color: Black
Structure: Modular and disassemblable
Material: 2.0 mm steel sheet
Static load: 1000 kg
19" Uprights: 4 pcs, C=2.00 mm,19” as per IEC 60297-1-2
Front door: With 4.0 mm glass, tempered as per EN 12150-1
Rear door: Perforated 80%
Side panels: Removable, 1.0 mm steel sheet, with ¼ turn lock
Levelling feet: 4 pcs of M10x35 mm
Cable entries: Pre-cut, base and roof (optional brush)
Roof ventilation: Natural or forced (up to four fans)
Color: Epoxy powder Black RAL 9005
Protection degree: IP20 as per EN 60529
Conformity: RoHS 2 as per 2011/65/EU
Warranty: 2 years

309071-SZ

Server 19" 24U H1156xW800xD1000 perforated 80% front and rear doors, removable side panels, with levelling feet, colour black

Price

Total
