Serie Industrial IP65 Archivi

Industrial Series IP65

309243

Request quotation

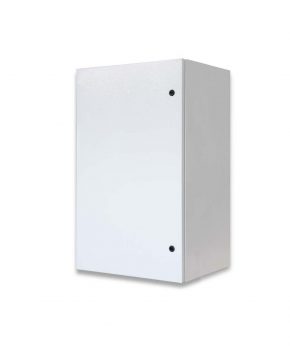

Industrial IP65 Wall-Mount 19" 9U H500xW600xD400 blind door, colour grey

Price

Total

Product details

Technical specifications

Code: 309243
Height (Rack unit): 9
Width (mm): 600
Depth (mm): 400
Front door: Blind
Static load capacity (Kg): 100
Color: Grey
Structure: Monoblock, Welded
Material: 1.5 mm steel sheet
Static load: 100 kg
19" Uprights: 2 pcs, t=2.0 mm, 19" as per IEC 60297-1-2
Blind door: 1.5 mm sheet
Cable entries: Base with flange removable from the outside
Mounting: Wall or pole (brackets not included)
Color: Epoxy powder Gray Polyester RAL 7035
Protection degree: IP65 as per EN 60529
Resistance degree: IK10 as per EN 62262
Conformity: RoHS 2 as per 2011/65/EU
Certification: CE as per EN62208
Warranty: 2 years

Industrial Series IP65

309244

Request quotation

Industrial IP65 Wall-Mount 19" 12U H650xW600xD400 blind door, colour grey

Price

Total

Product details

Technical specifications

Code: 309244
Height (Rack unit): 12
Width (mm): 600
Depth (mm): 400
Front door: Blind
Static load capacity (Kg): 100
Color: Grey
Structure: Monoblock, Welded
Material: 1.5 mm steel sheet
Static load: 100 kg
19" Uprights: 2 pcs, t=2.0 mm, 19" as per IEC 60297-1-2
Blind door: 1.5 mm sheet
Cable entries: Base with flange removable from the outside
Mounting: Wall or pole (brackets not included)
Color: Epoxy powder Gray Polyester RAL 7035
Protection degree: IP65 as per EN 60529
Resistance degree: IK10 as per EN 62262
Conformity: RoHS 2 as per 2011/65/EU
Certification: CE as per EN62208
Warranty: 2 years

Industrial Series IP65

309245

Request quotation

Industrial IP65 Wall-Mount 19" 16U H850xW600xD400 blind door, colour grey

Price

Total

Product details

Technical specifications

Code: 309245
Height (Rack unit): 16
Width (mm): 600
Depth (mm): 400
Front door: Blind
Static load capacity (Kg): 100
Color: Grey
Structure: Monoblock, Welded
Material: 1.5 mm steel sheet
Static load: 100 kg
19" Uprights: 2 pcs, t=2.0 mm, 19" as per IEC 60297-1-2
Blind door: 1.5 mm sheet
Cable entries: Base with flange removable from the outside
Mounting: Wall or pole (brackets not included)
Color: Epoxy powder Gray Polyester RAL 7035
Protection degree: IP65 as per EN 60529
Resistance degree: IK10 as per EN 62262
Conformity: RoHS 2 as per 2011/65/EU
Certification: CE as per EN62208
Warranty: 2 years

Industrial Series IP65

309246

Request quotation

Industrial IP65 Wall-Mount 19" 9U H500xW600xD400 glass door, colour grey

Price

Total

Product details

Technical specifications

Code: 309246
Height (Rack unit): 9
Width (mm): 600
Depth (mm): 400
Front door: Tempered glass
Static load capacity (Kg): 100
Color: Grey
Structure: Monoblock, Welded
Material: 1.5 mm steel sheet
Static load: 100 kg
19" Uprights: 2 pcs, t=2.0 mm, 19" as per IEC 60297-1-2
Glass door: With 4.0 mm glass, tempered as per EN 12150-2
Cable entries: Base with flange removable from the outside
Mounting: Wall or pole (brackets not included)
Color: Epoxy powder Gray Polyester RAL 7035
Protection degree: IP65 as per EN 60529
Resistance degree: IK08 EN 62262
Conformity: RoHS 2 as per 2011/65/EU
Certification: CE as per EN62208
Warranty: 2 years

Industrial Series IP65

309247

Request quotation

Industrial IP65 Wall-Mount 19" 12U H650xW600xD400 glass door, colour grey

Price

Total

Product details

Technical specifications

Code: 309247
Height (Rack unit): 12
Width (mm): 600
Depth (mm): 400
Front door: Tempered glass
Static load capacity (Kg): 100
Color: Grey
Structure: Monoblock, Welded
Material: 1.5 mm steel sheet
Static load: 100 kg
19" Uprights: 2 pcs, t=2.0 mm, 19" as per IEC 60297-1-2
Glass door: With 4.0 mm glass, tempered as per EN 12150-2
Cable entries: Base with flange removable from the outside
Mounting: Wall or pole (brackets not included)
Color: Epoxy powder Gray Polyester RAL 7035
Protection degree: IP65 as per EN 60529
Resistance degree: IK08 EN 62262
Conformity: RoHS 2 as per 2011/65/EU
Certification: CE as per EN62208
Warranty: 2 years

Industrial Series IP65

309248

Request quotation

Industrial IP65 Wall-Mount 19" 16U H850xW600xD400 glass door, colour grey

Price

Total

Product details

Technical specifications

Code: 309248
Height (Rack unit): 16
Width (mm): 600
Depth (mm): 400
Front door: Tempered glass
Static load capacity (Kg): 100
Color: Grey
Structure: Monoblock, Welded
Material: 1.5 mm steel sheet
Static load: 100 kg
19" Uprights: 2 pcs, t=2.0 mm, 19" as per IEC 60297-1-2
Glass door: With 4.0 mm glass, tempered as per EN 12150-2
Cable entries: Base with flange removable from the outside
Mounting: Wall or pole (brackets not included)
Color: Epoxy powder Gray Polyester RAL 7035
Protection degree: IP65 as per EN 60529
Resistance degree: IK08 EN 62262
Conformity: RoHS 2 as per 2011/65/EU
Certification: CE as per EN62208
Warranty: 2 years

Industrial Series IP65

Height (Rack unit)

Width (mm)

Depth (mm)

Front door

Static load capacity (Kg)

Color

309243

309244

309245

309246

309247

309248
