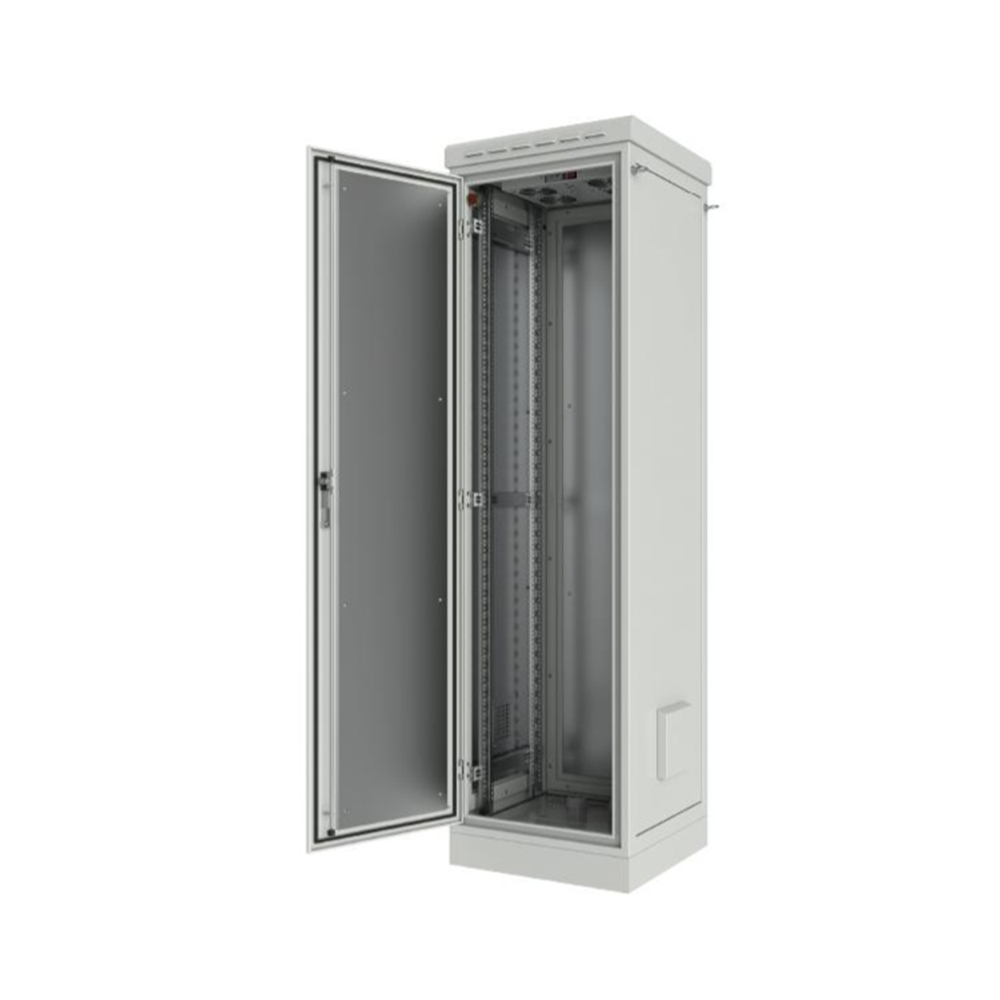

IP66 outdoor floor standing industrial cabinet 19" front and rear 42U H2191xW600xD600 blind door, protective roof that can be opened from the inside, 2 fans with analog thermostat, filter, double internal chamber, plinth, color gray RAL 7035
Main Features
The IP66 Outdoor Industrial Series is the ideal solution for applications in the Telecommunications, Energy & Utilities, Transportation, Video Surveillance, and Smart City & IoT sectors. Designed for outdoor applications, these cabinets are completely dustproof and resistant to water jets from any direction. They are suitable for more severe outdoor environments, where greater exposure to atmospheric elements such as rain, snow, and humidity is expected.
Technical specifications
- Width (mm)
- Depth (mm)
- Doors
1.5mm blinds
- Side panels
1.5mm steel sheet that can be opened from the inside
- Structure
Welded
- Material
1.5 mm steel sheet
- Static load
600 kg
- Uprights
4 x 2.0 mm as per to IEC 60297, U numbered
- Blind doors
1,5 mm steel sheet
- Side panels
1.5mm steel sheet that can be opened from the inside
- Cable Entry
Base with removable flange
- Ventilation
2 fans with analog thermostat
- Plinth
100 mm
- Roof
Openable from the inside
- Color
Electrostatic powder coating, RAL7035 Grey
- Protection degree
IP66 as per EN 60529
- Resistance degree
IK10 as per EN 62262
- Conformity
RoHS 2 as per 2011/65/EU
- Certification
CE as per EN62208
- Warranty
2 years
Documentation
