Main Features

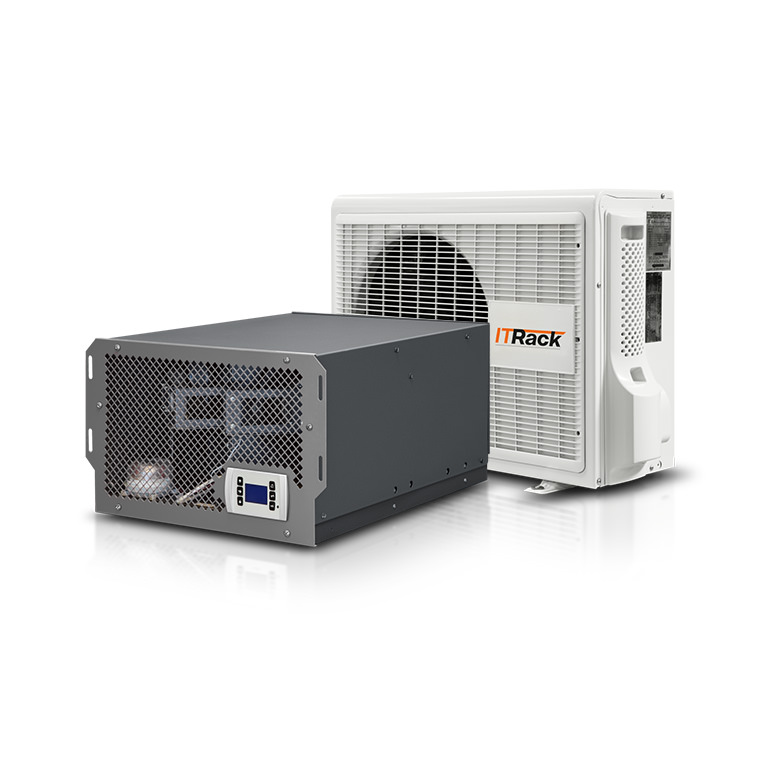

InRack Cooler HD is the ideal conditioning solution of 19" Rack cabinets, for which precise control of internal temperature and 24x7 operation are required. In split version with R410A-cooling gas based external condensing unit, the range is extended from 3.6 to 7.3 kW. InRack Cooler High Density is controlled by dedicated software which allows LAN connection of up to sixteen (16) units and interfacing with an automatic door-opening system in the event of an alarm.
Technical specifications
- Internal unit cooling capacity (kW)
6,8
- Internal unit SHR-Sensible Heat Ratio
nd
- Internal unit air evaporator capacity (m3/h)
1330
- Internal unit fan power input (kW)
0, 33
- Internal unit power supply (V-/ Hz)
230/1/50
- Internal unit dimensions W x H x D (mm)
485 x 300 x 600
- Internal unit weight (Kg)
29, 5
- External unit total absorbed power (kW)
2, 1
- External unit total absorbed current (A)
4, 2
- External unit compressors / circuits (- / -)
1/1
- External unit nominal Lp @ rpm; Q = 2* (db/A)
46
- External unit power supply (V-/Hz)
230/1/50
- External unit dimensions W x H x D (mm)
942 x 735 x 341
- External unit weight (Kg)
71
