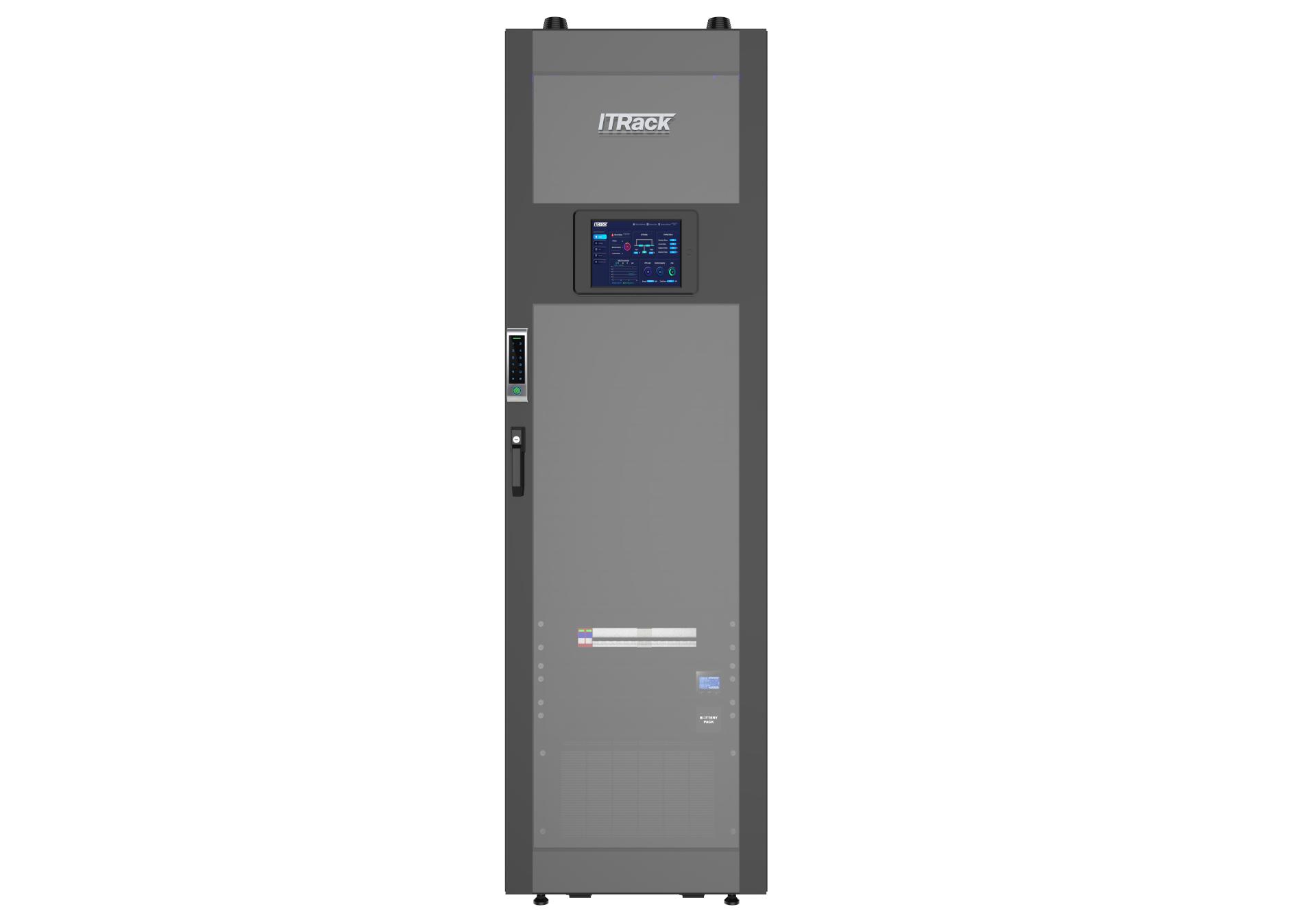

MDC-06T
Micro DC Edge Cube 4.0 integrato e Pre-ingegnerizzato, scalabile e integrato con 1*armadio 600mm*1200*42U (disponibili 29U), protezione IP55, controllo accessi 3 in 1, UPS 6kVA, 16* batteria 12V9AH, raffreddamento montato su rack da 3,9kW con condensatore remoto, distribuzione e gestione dell'alimentazione e monitoraggio completo. 220- 240v/1P/50-60Hz
Main Features
Our solution is made of IP20 or IP55 Server cabinets with Micro Data Center functionality. It integrates an intelligent cooling system and includes UPS unit, power supply & access control system. The monitoring system is based on an agile and intuitive data architecture with a web interface featuring single-point management and control of status & efficiency of geographically distributed devices.
Technical specifications
- Width (mm)
- Depth (mm)
- 19" Rack Cabinet dimensions
42U 800 x 1000
- 19" Rack Cabinet degree of protection
IP20 as per EN 60259
- 19" Rack Cabinet front door
Tempered glass
- 19" Rack Cabinet rear door
Blind
- Available Rack Units (RU) of 19” Rack Cabinet
33
- Area occupied of 19” Rack Cabinet
0, 80 m2
- Color of 19" Rack Cabinet
Black, RAL 9005
- Rack Units (RU) occupied by the internal cooling unit
7U
- Cooling power of the internal cooling unit
3.6kW
- Evaporated air capacity of the internal cooling unit
915 m3/h
- Noise of the internal cooling unit
57 dB(A)
- Installation of the external condenser
Outdoor
- External condenser total absorbed power
1.1 kW
- External condenser total absorbed current
4.7 A
- External condenser coolant
R410A
- External condenser noise
42 dB(A)
- PDU type
1 x Metered PDU 20xC13 + 4xC19 3 m cable with CEE 32A plug
- Installation of PDU in the Rack
0U (assembly in the back of the cabinet)
- UPS type
1 x 3kVA Online UPS (Air Conditioning and Monitoring)
- UPS maximum nominal power
3kVA
- UPS power factor
0.9
- UPS nominal tension
220-230-240 Vac
- UPS nominal frequency
50/60 Hz ±5Hz
- Rack Units (RU) occupied by the UPS
2U
- Monitoring System installation in the 19” Rack Cabinet
0U (assembly inside the cabinet)
- Language supported in Monitoring System
English-Italian
- Monitoring of the temperature/humidity sensor
Yes
- Handle monitoring
Open and Close status
- UPS monitoring
Battery level capacity
- PDU monitoring
Amps - Volts - Watts & kW/h
- Cooling unit monitoring
Set Point - On/Off - Alarm
