Main Features

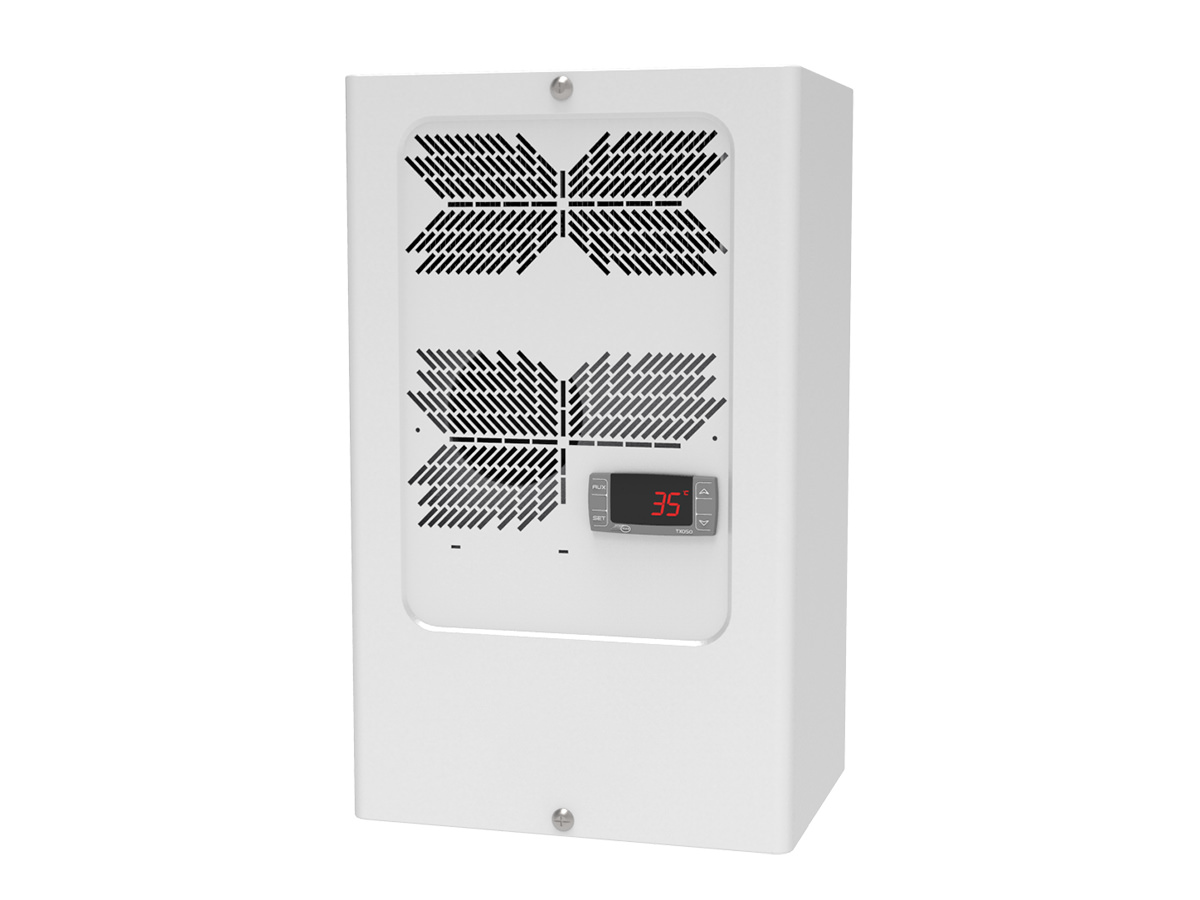

"The NXT Series air conditioners with high reliability and cooling capacity are ideal to effectively protect all the equipment present in the IP55/IP65 Industrial Series Racks from overheating."
Technical specifications
- Panel mounting
Yes
- Power draw EN14511 - A35A35 (W)
380
- Power draw EN14511 - A35A50 (W)
240
- Power supply (V ~ Hz)
230 1~ 50-60
- Width (mm)
280
- Height (mm)
460
- Depth (mm)
200
- Max Current (A)
1,5
- Inrush Current (A)
8
- T Fuse (A)
4
- Power draw EN14511 - A35A35 (A)
240
- Power draw EN14511 - A35A50 (A)
277
- Operating cycle
100%
- Electrical connection
4-pin plug
- Cooling
R134a
- Cabinet air fan capacity (m3/h)
165
- Internal temperature range (°C)
20 – 45
- Temperature regulation
Electronic thermostat TX050 factory set at 35°C
- External temperature range (°C)
20-55* (*50°C a 60 Hz)
- EN60529 ingress protection - cabinet side
IP55
- Noise level (db-A)
60
- Weight (kg)
17
- Color
RAL 7035 embossed effect
- Conformity
CE -UK CA – EAC – NEMA
