Main Features

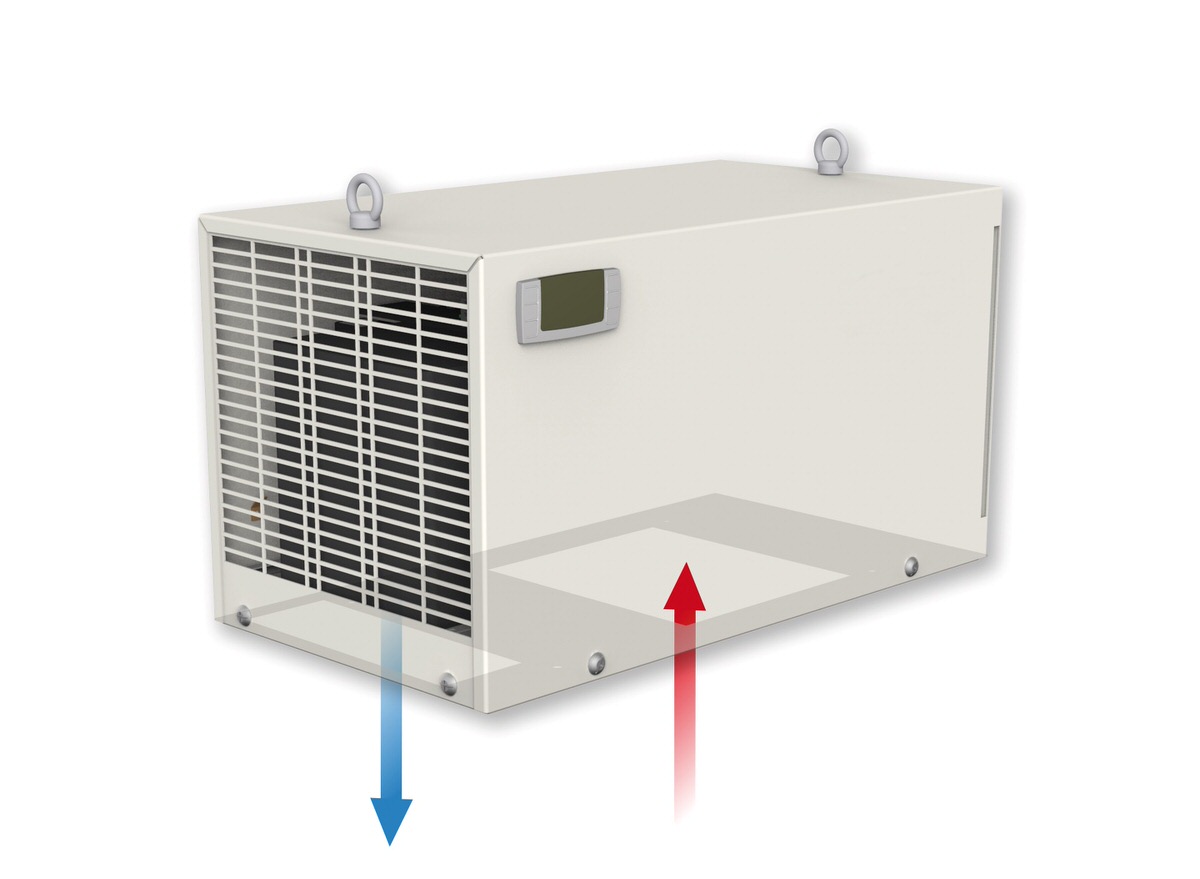

The DEK Cooling unit Series, over and above their high reliability and good cooling capacity, stand out for guaranteeing an effective condensation management. Moreover, their compact dimensions and robust design make it one of the most used products for installations on roof of Industrial IP55 Series Racks.
Technical specifications
- Power draw EN14511 - A35A35 (W)
1150
- Power draw EN14511 - A35A50 (W)
890
- Power supply (V ~ Hz)
230 1~ 50-60
- Width (mm)
401
- Height (mm)
415
- Depth (mm)
572
- Max Current (A)
3, 2
- Inrush Current (A)
11
- T Fuse (A)
6
- Power draw EN14511 - A35A35 (A)
550
- Power draw EN14511 - A35A50 (A)
660
- Operating cycle
100%
- Electrical connection
4-pin plug
- R134a Coolant (kg)
0, 63
- Max cooling circuit pressure (bar)
25
- External air fan capacity (m3/h)
1010
- Cabinet air fan capacity (m3/h)
570
- Internal temperature range (°C)
20 – 50
- Temperature regulation
Electronic thermostat, factory set to 35°C
- External temperature range (°C)
20-55* (*50°C a 60 Hz)
- EN60529 ingress protection - cabinet side
IP55
- EN60529 ingress protection - ambient side
IP34
- Noise level (db-A)
65
- Weight (kg)
40
- Color
RAL 7035 embossed effect
- Conformity
CE
